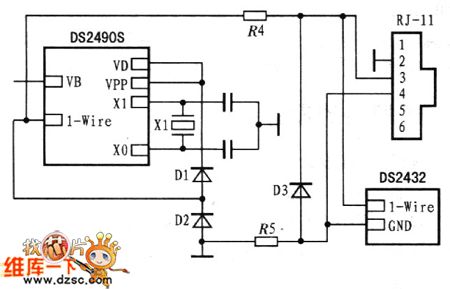

RJ-11 bridge circuit schematic

Published:2012/11/1 22:00:00 Author:Ecco | Keyword: bridge | From:SeekIC

DS2490S is the bridge circuit of USB port and 1 - Wire device, which can be directly connected to the USB host system. It can produce strict timing and voltage slew rate controlled 1-Wire waveforms, and it can meet the requirements of the USB interface communication protocol to ensure normal USB port and l-Wire devices and securely communication.
