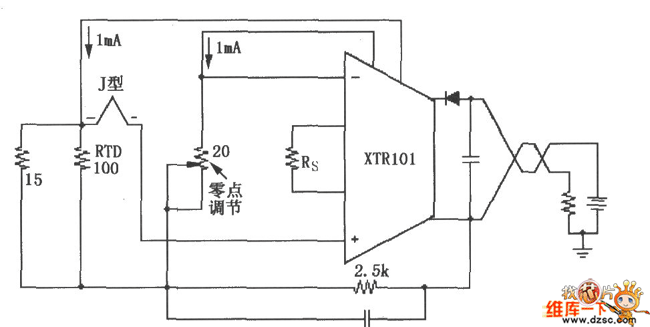

RTD cold junction compensation thermocouple input circuit composed of XTR101

Published:2011/4/1 2:19:00 Author:may | Keyword: TD cold junction compensation thermocouple input | From:SeekIC

This circuit use J type RTD. Its resistance value corresponding to the temperature can be checked through at RTD factory offered table. It uses 20Ω zero adjustment potentiometer to zero point correction.
