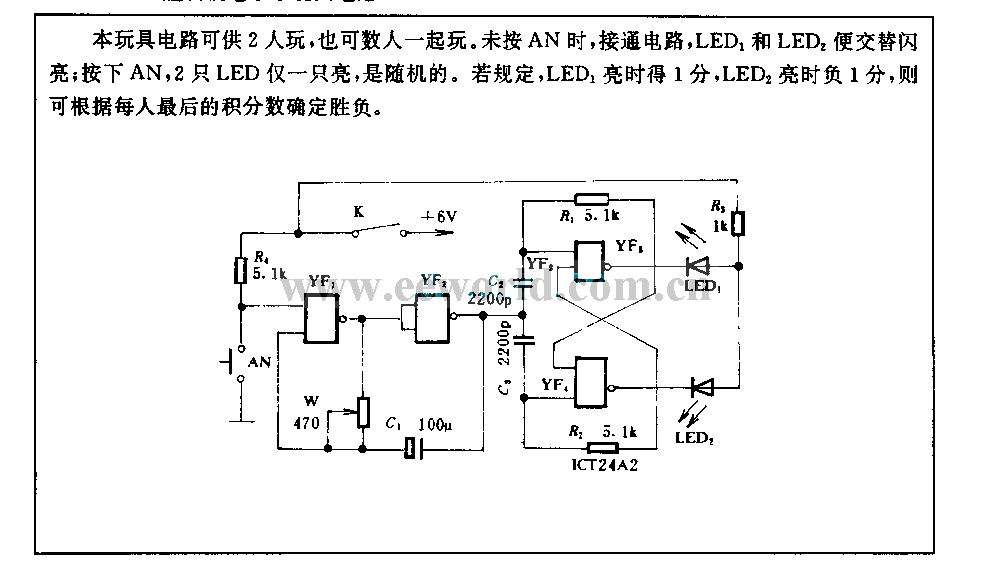

Random electronic dinky toy circuit

Published:2011/5/13 2:59:00 Author:Nicole | Keyword: electronic dinky toy | From:SeekIC

This toy circuit can be played by 2 persons, even more people. If it does not press AN, thecircuit is turned on, LED1 and LED2 is flashing by turns; to press AN, only one of LEDs turns on, it is random. To order if LED1 turns on, it will obtain 1 point, and LED2 turns on, it will obtain negative-one point, the victory or defeat is decided by everyone's final point.
