Published:2012/8/11 1:48:00 Author:Ecco | Keyword: Resistor - transistor gate | From:SeekIC

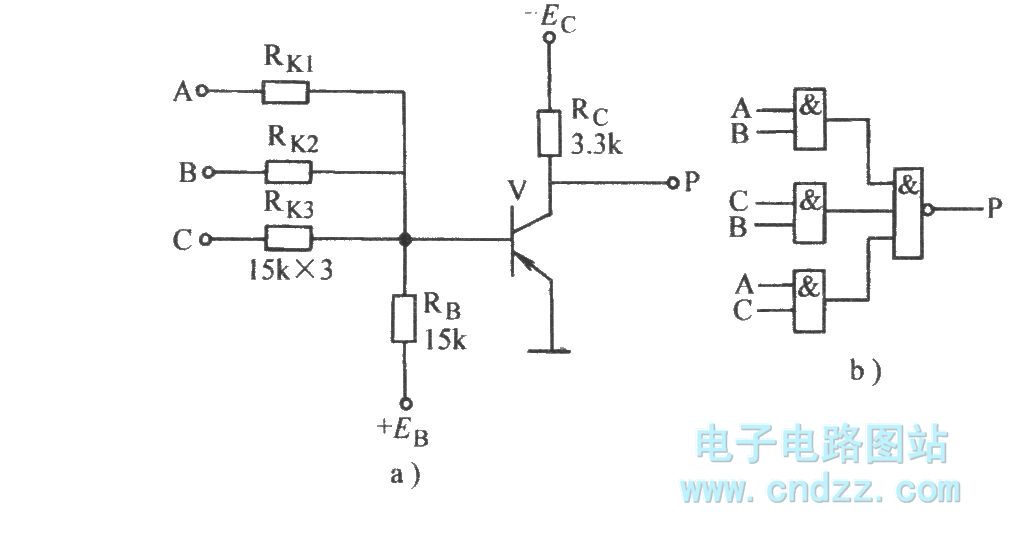

Figure (a) is theresistor - transistor gate circuit diagram , it is similar to the ordinary NAND gate, but each input endisconnectedto a Rk with the samevalue.
Figure (b) shows its logic symbol .
