SATURATED_FLIP_FLOP

Published:2009/7/14 21:24:00 Author:May | From:SeekIC

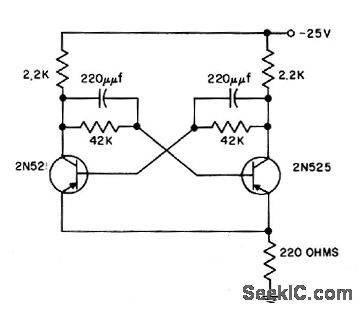

Simple circuit shown is preferable at moderate operating temperatures. If emitter triggering is not used, 220-ohm emitter resistor can be removed.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 186.
