SCHMITT_TRIGGER_WITHOUT_HYSTERESIS

Published:2009/6/30 3:43:00 Author:May | From:SeekIC

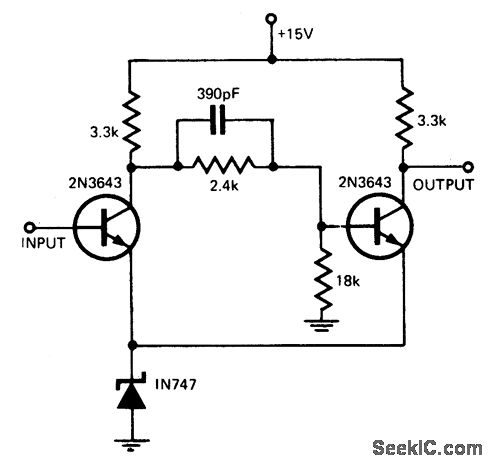

By replacing the common-emitter resistor in a conventional Schmitt by a zener diode, the hysteresis normally associated with these circuits is eliminated.
