SCR_TIME_DELAY

Published:2009/7/14 22:36:00 Author:Jessie | From:SeekIC

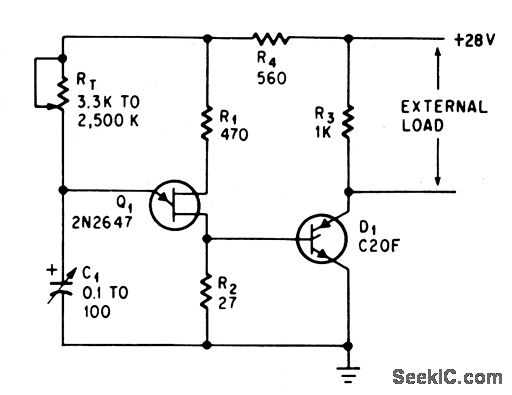

Unijunction transistor Q1 and low-cost scr D1 give time delay of 0.4 millisec to 4 minutes, adjustable by CT-RT.-D. V. Jones, Quick-On-The-Trigger Design, Electronics, 38:12, p 105-110.
