SIMPLE_FREQUENCY_DOUBLER

Published:2009/7/12 23:02:00 Author:May | From:SeekIC

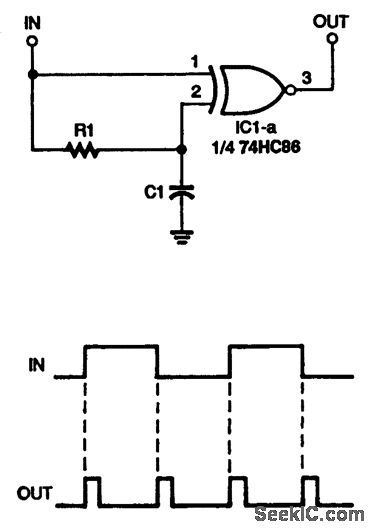

This circuit uses only a single exclusive-OR gate and a couple of passive components. The width of the output pulses is determined by the time constant of the RC network,and the maximum input frequency cannot exceed 1/2RC.
