SINE_COSINE_APPROXIMATOR

Published:2009/7/15 3:17:00 Author:Jessie | From:SeekIC

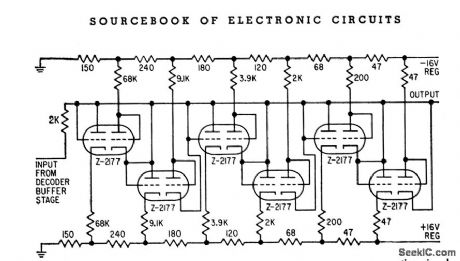

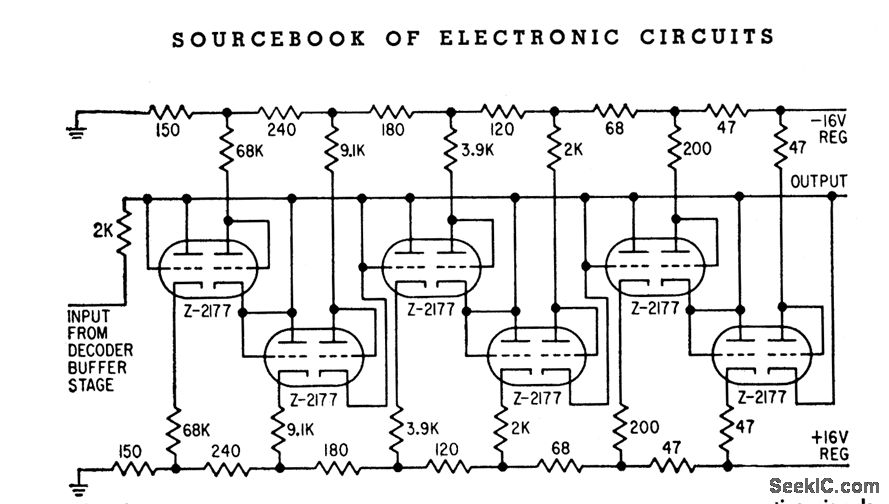

Converts triangular first approximation of sine and cosine of azimuth angle to accurate approximation of these functions by use of two diode-connected triodes as function generators, one for positive signals and the other for negative signals.-B.L. Bair, Logical Design of SAGE Input Monitor, Electronics,31:33, p 78-81.
