SINE_WAVE_SHAPER_

Published:2009/7/6 3:42:00 Author:May | From:SeekIC

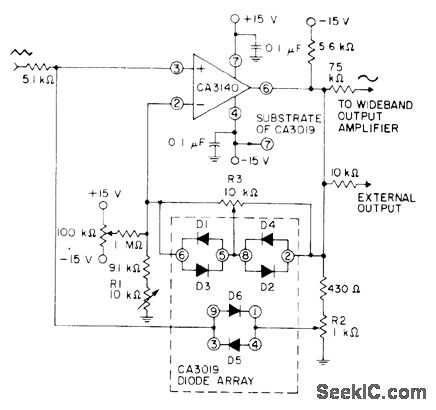

Uses CA3140 opamp as voltage follower, acting with diodes from CA3019 array to convert triangle output of function generator or other source to sine wave having total harmonic distortion typically less than 2%.- Circuit Ideas for RCA Linear ICs, RCA Solid State Division, Somelville, NJ, 1977, p 5.
