SINGLE_CONVERSION_SYNTHESIZER

Published:2009/7/6 2:07:00 Author:May | From:SeekIC

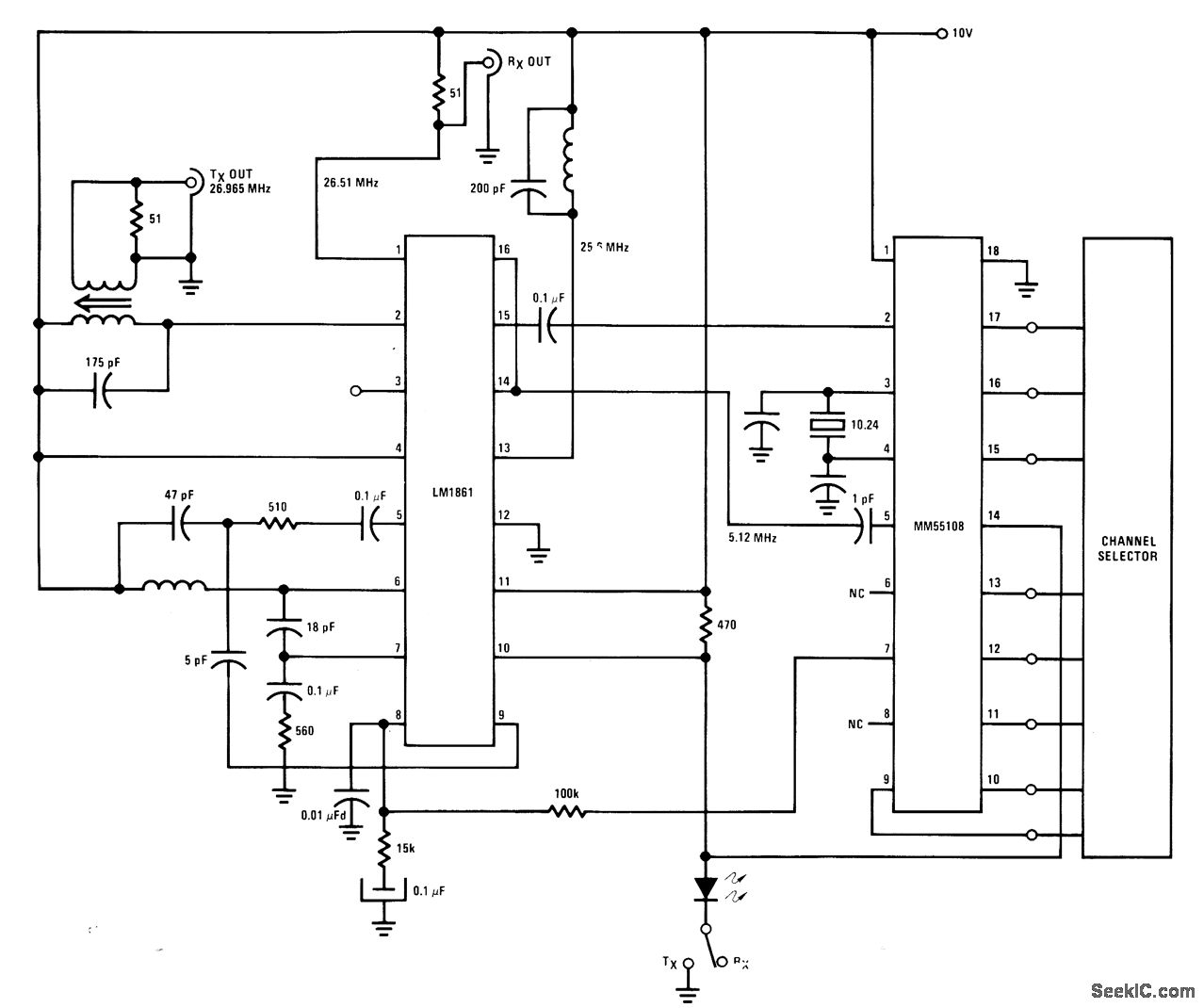

Used in single-conversion CB transceiver in whichVCO operates at channel frequency during transmit and 455 kHz below channel frequency during receive. 5.120 MHz is quintupled to 25.600 MHz to mix and provide input to programmable divider.－L.Sample,A Linear CB Synthesizer, IEEE Transactions on Consumer Electronics Aug，1977、p 200－206
