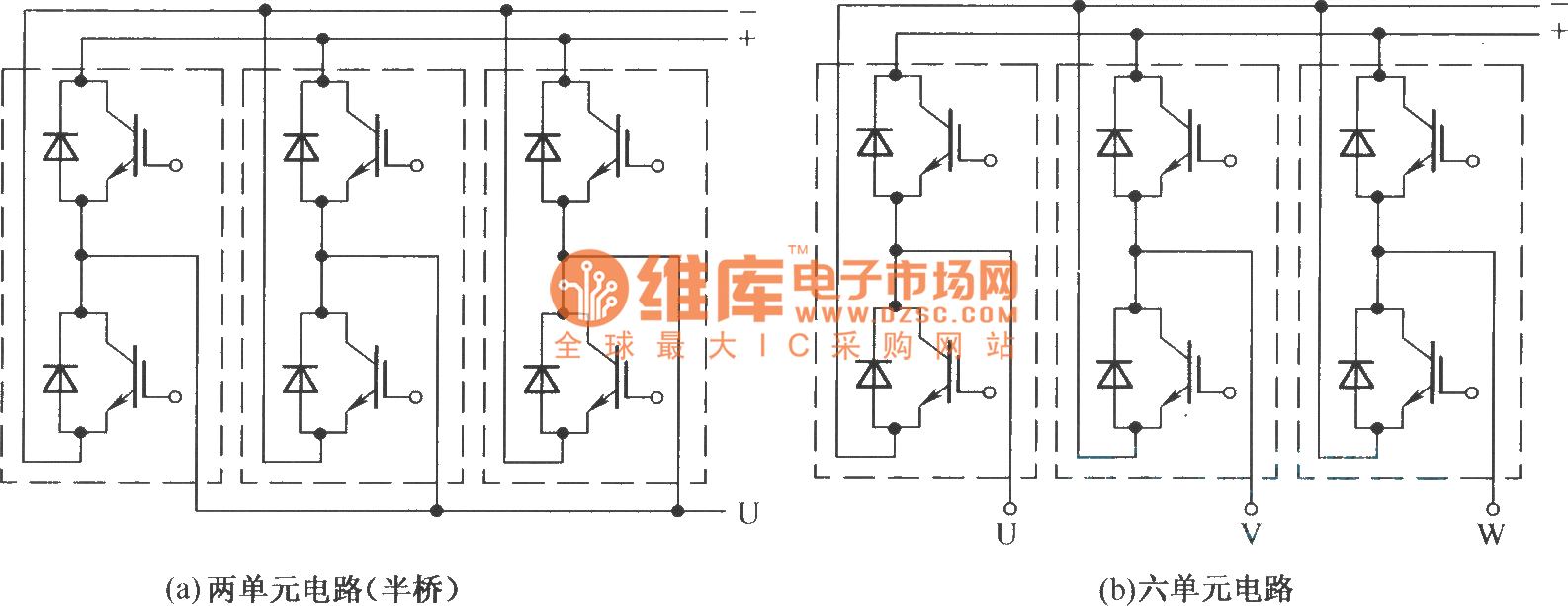

SKiiPPACK element circuit

Published:2011/4/6 3:36:00 Author:may | Keyword: element | From:SeekIC

SKiiPPACK(Swmikron Integrated Intelligent Power Pack) series module is different from traditionary IGBT module. In SKiPPACK, DCB uropatagia with IGBT and diode chip is not weld at on one copper base, but get help from pressure unit of composite material, press almost the whole on radiator.
