SOLAR_POWER_BACKUP

Published:2009/6/29 21:05:00 Author:May | From:SeekIC

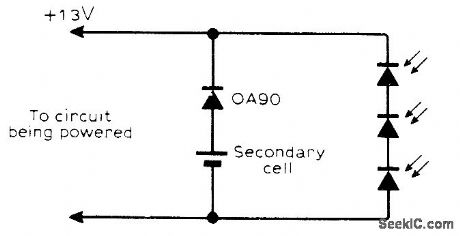

If solar-cell voltage drops 0.2 V below battery voltage, circuit is powered by storage cell feeding through forward-biased 0A90 or equivalent germanium diode. When solar-cell voltage exceeds that of battery, battery is charged by approximately constant reverse leakage current through diode. Battery can be manganese-alkaline type or zinc-silver oxide watch-type celL-M. Hadley Automatic Micropower Battery Charger, Wireless World, Dee. 1977, p 80.
