SOLION_TIME_BASE

Published:2009/7/16 4:15:00 Author:Jessie | From:SeekIC

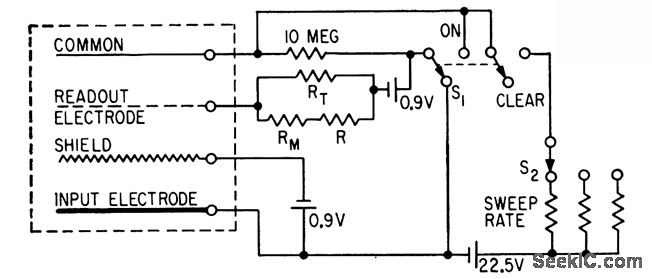

Electrical readout integrator consisting of solion liquid diode provides readout current that increases linearly with lime for constant current input, permitting use of input to axes of X-Y recorder.-R. N. Lane and D. B. Cameron, Current Integration with Solion Liquid Diodes, Electronics, 32:9, p 53-55.
