STABILIZED_MONO

Published:2009/7/14 21:33:00 Author:May | From:SeekIC

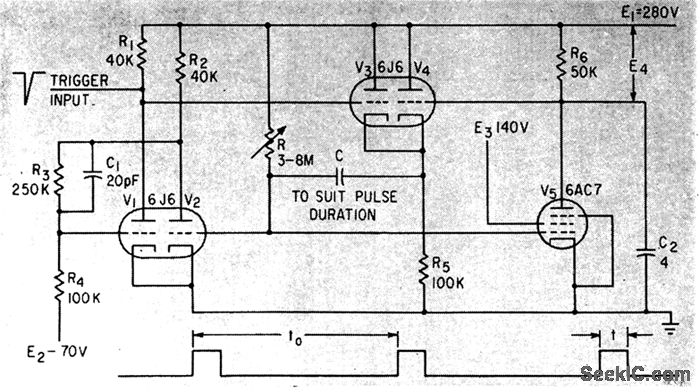

Operates us 10:1 divider at 1,000 pps. Division ratio of mvbr remains constant for supply variations of from 40 to 400 v. Average plate voltage of V5 is adjusted automatically to maintain optimum working conditions throughout operating range.-T. Hornak, Stabilizing Monostable Multivibrators, Electronics, 33:45, p 76.
