STEREO_TAPE_PLAYBACK

Published:2009/7/14 5:39:00 Author:May | From:SeekIC

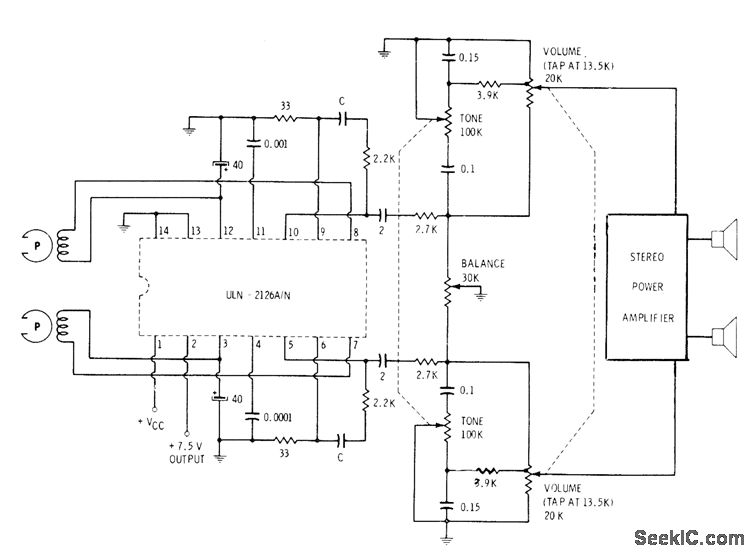

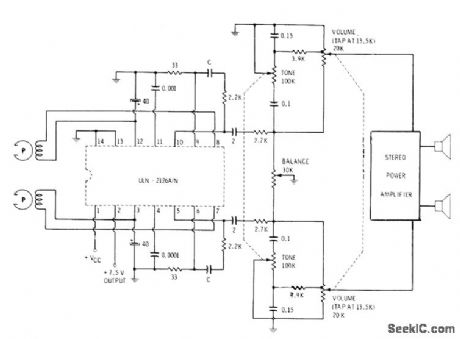

Single Sprague ULN-2126A IC provides preamplification for two channels along with 2-W output power for driving stereo power amplifier. Values shown give equalization required for tape playback. Single ganged tone control serves for both treble and bass adjustment-E. M. Noll, Linear IC Principles, Experiments, and Projects, Howard W. Sams, Indianapolis, IN, 1974, p 237 and 243.
