STR10006 Switch Power Thick Membrane Integrated Circuit

Published:2011/7/19 11:26:00 Author:Michel | Keyword: Switch Power, Thick Membrane, Integrated Circuit | From:SeekIC

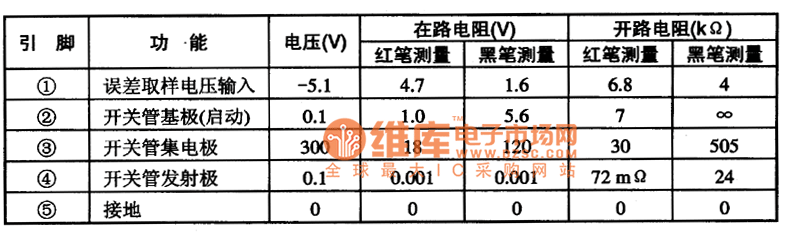

STR10006 is switch power thick membrane integrated circuit of SANKEN and it is used for big TV screens, the deputy of switch power supply screens. First,Functions and Features STRlO006 integrated circuit contains RCC control system and power switch tube, sampling error signal processing circuit,other auxiliary power supply circuit and the protection circuit etc. Second,Pins and Data STR10006 integrated circuit uses pins single in-line package and its pins functions and dataare shown as table 1.The data is measured via the Panasonic TC-29GVl2G type big TV screen by using U2O1 type multimeter.
