SUMMING_AND_WEIGHTING_NETWORK

Published:2009/7/14 2:38:00 Author:May | From:SeekIC

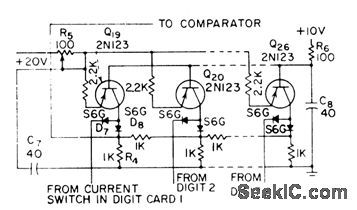

Consists of eight identical circuits. Precise value of direct current from constant-current source, fed into first node of resistive ladder network, produces 2.5-v step at summing and weighting network output, or half of maximum analog input of 5 v.-W.B. Towles, Transistorized Analog-Digital Converter, Electronics, 31:31, p 90-93.
