SYNCHRONIZATION_TO_10_MHz

Published:2009/7/15 22:00:00 Author:Jessie | From:SeekIC

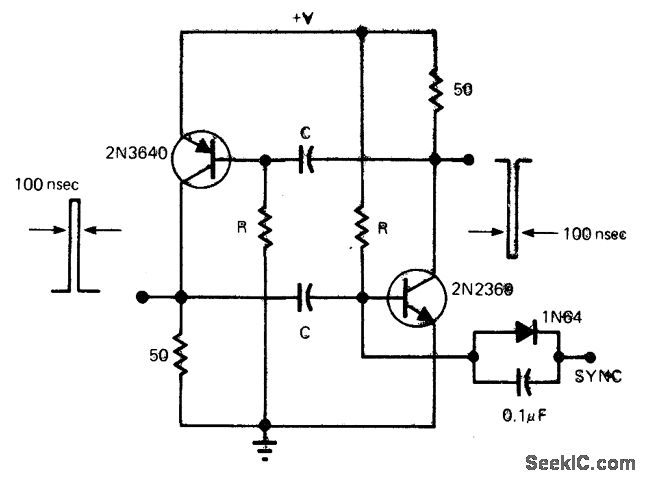

Free-running pulse generator circuit uses diode to inhibit operation until sync signal is applied. Circuit then pulses until sync signal returns to original state. Complementary outputs having pulse widths of 100 ns swing essentially from ground to power supply voltage that can be anywhere in range from 0.65 V to 15V. Values used for R and C determine frequency. For oscillation, R must be in range of 1 kilohm to 1 megohm. For 5-V supply, frequency is 1.2/RC.-B. Shaw, Oscillator Provides Fast, Low Duty-Cycle Pulses, EDN Magazine, March 20, 1975, p 73.
