SYNC_CIRCUIT_FOR_QUINARY_SCALER

Published:2009/7/14 3:52:00 Author:May | From:SeekIC

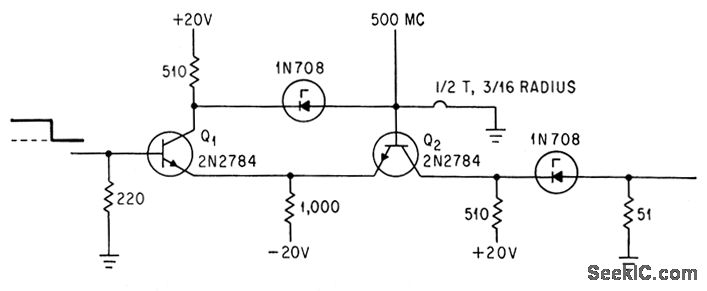

Time-base signal at 500 Mc turns Q1 on and Q2 off at timing rate. Negative 1-V start signal applied to base of Q1 makes 500-Mc signal appear at collector of Q2 to serve as output for one of quinary scalers. Two scalers in parallel can measure time accurately to within 1 nsec. -R. Englemann, Quinary Scalers: Measure time Intervals Digitally, Electronics, 37:5, p 34-36.
