Shunt regulator circuit

Published:2011/3/30 22:06:00 Author:may | Keyword: Shunt regulator | From:SeekIC

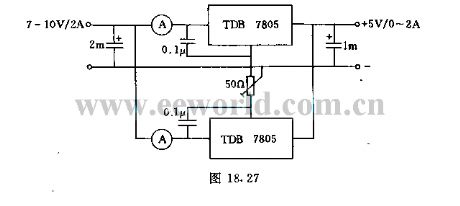

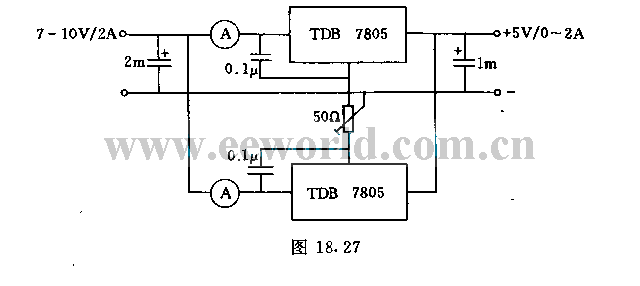

This circuit use two intergrated regulator 7058 parallel connection, every voltage regulator circuit input side all switch-in 0.1µF capacitor to clear high frequency oscillation.
