Single-phase motor reactor tap speed adjusting circuit

Published:2012/9/10 22:38:00 Author:Ecco | Keyword: Single-phase motor, reactor tap, speed adjusting | From:SeekIC

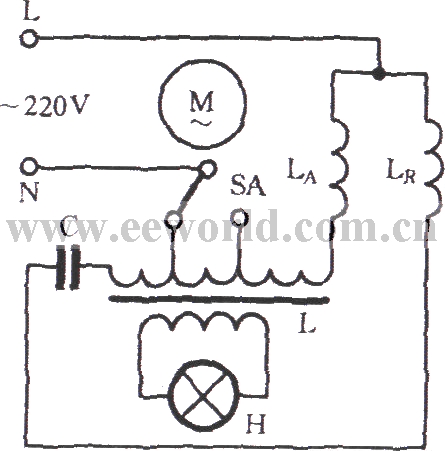

The different speed blocks of reactor L are adjusted by tap and the speed switch. L is connected to the secondary winding LA in series. LR is the primary winding. L provides supply voltage through another winding for indicator H.
