TA31002 ringing integrated circuit diagram

Published:2011/5/3 3:41:00 Author:Ecco | Keyword: ringing, integrated circuit | From:SeekIC

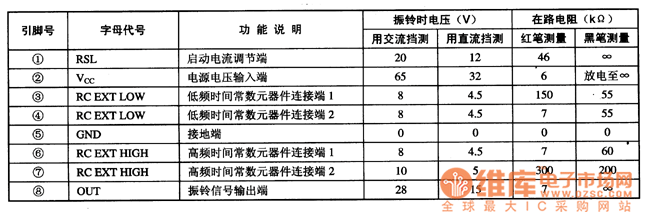

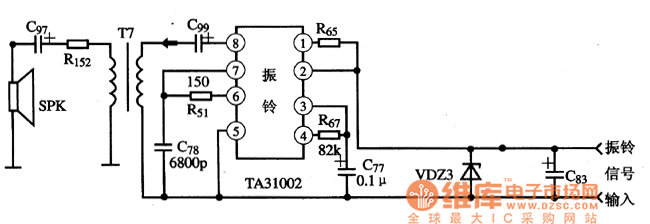

TA31002 is ringing integrated circuit produced by Toshiba, it is widely used in the communications equipment. 1. pin functions and data TA31002 IC uses 8-pin dual in-live-style package, the pin functions and data are listed in Table 1. Table 1 lists TA31002 IC pin functions and data. 2. A typical application circuit The typical bell application circuitcomposed of TA31002 integrated circuit is shown in Figure 1. Figure 1 shows typical application circuit of TA31002 integrated circuit.
