TA31033P call integrated circuit diagram

Published:2011/5/3 3:48:00 Author:Ecco | Keyword: call, integrated circuit | From:SeekIC

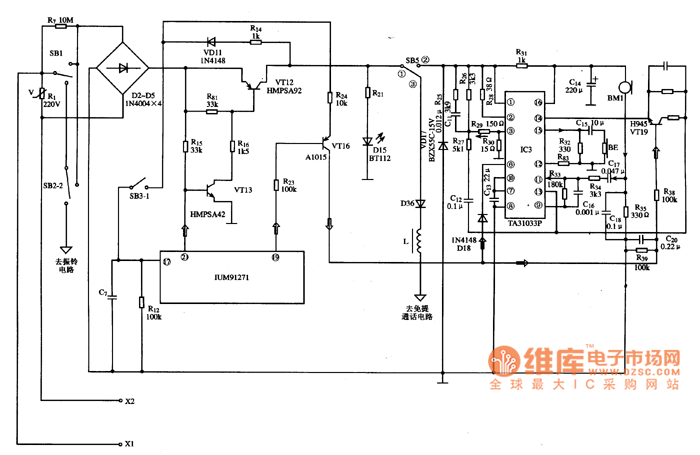

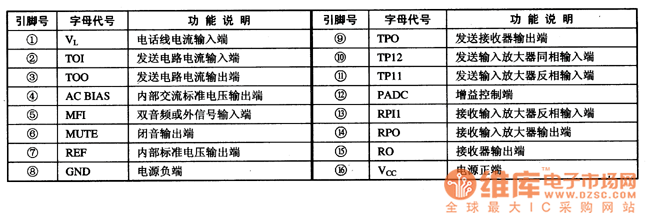

TA31033P is a call-specific integrated circuit, which is widely used in the call circuit of communications equipment, such as cordless phones and so on. 1. Pin function TA31033P uses 16-pin integrated circuit dual in-line inverse the package structure, the pin function is shown in Table 1. Table 1 shows TA31033P IC pin function. 2. A typical application circuit The typical application circuit of calling circuit composed of TA31033P integrated circuit is shown in Figure 1.Figure 1 shows the typical application circuit of TA31033P integrated circuit.
