TA7315BP frequency conversion switch integrated circuit diagram

Published:2011/5/5 3:37:00 Author:Ecco | Keyword: Frequency conversion , switch , integrated circuit | From:SeekIC

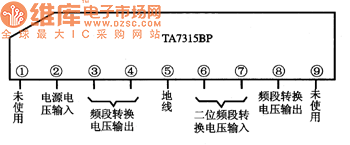

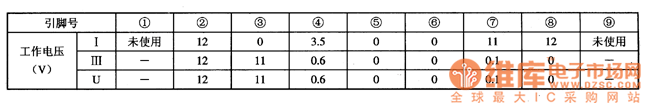

TA7315BP is the frequency conversion switch integrated circuit produced by Toshiba, it is widely used in various screen color TV remote control system for frequency selection. 1. Features of functionTA7315BP IC embedded frequency conversion control signal decoding circuit, decoding driver control circuit and other auxiliary functions circuit. 2. Pin functions and dataTA7315BP integrated circuit uses 9 feet inline package, the pin functions are shown in Figure 1, the typical operating voltage is shown in Table 1. Figure 1 shows TA7315BP IC pin functions, table 1 shows the typical operating voltage of TA7315BP integrated circuit.
