TB2003-004FN system control microcomputer integrated circuit

Published:2011/5/5 8:20:00 Author:TaoXi | Keyword: system control, microcomputer | From:SeekIC

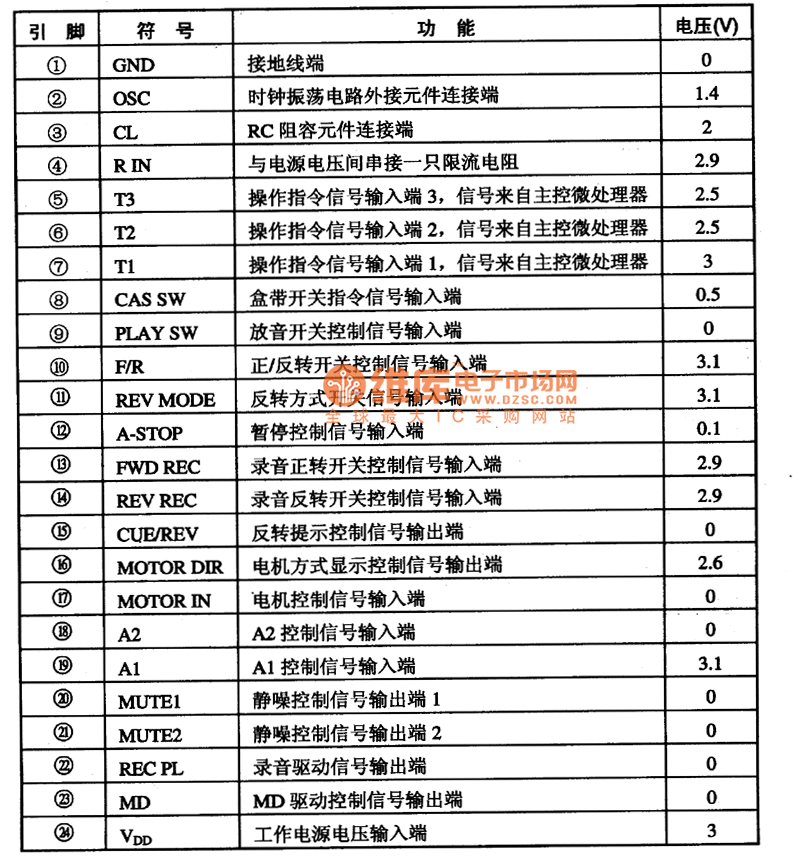

The TB2003-004FN system control microcomputer integrated circuit is produced by the TOSHIBA company, and it can be used in the top grade walkman cassette player applications, and the pin functions and data is as shown in table 1. Table1 The pin functions and data of the TB2003-004FN
