TCM5087 microcomputer dial integrated circuit

Published:2011/4/25 3:24:00 Author:TaoXi | Keyword: microcomputer, dial integrated | From:SeekIC

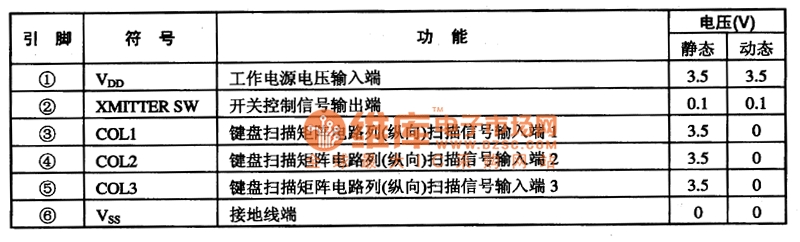

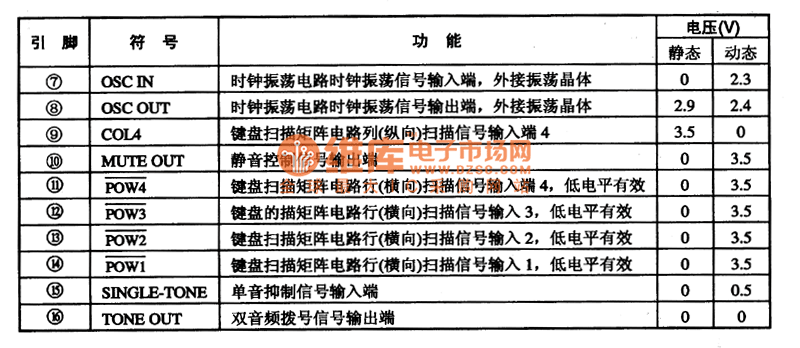

The TCM5087 microcomputer dial integrated circuit can be used in communication equipment as the Dual audio signal code generator. 1.Features The TCM5087 IC has the dial-up signal encode circuit, key switch signal translate and edit circuit, and the mute control circuit. 2.Pin functions and data The pin functions and data of the TCM5087 IC is as shown in table 1.
