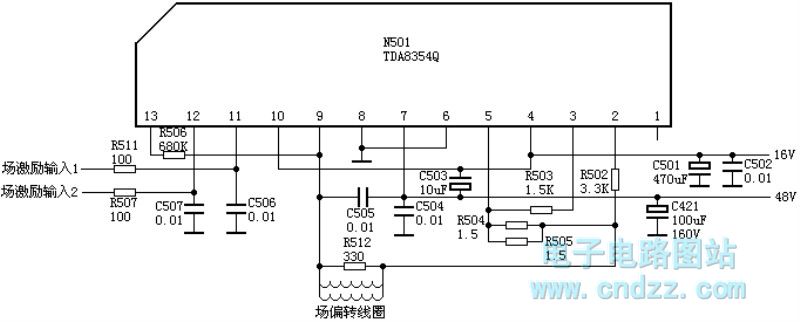

TDA8354Q Field output circuit

Published:2011/11/3 3:14:00 Author:Ecco | Keyword: Field output | From:SeekIC

Pin 1: 0.3V-- pin 2: 7.9V-- current feedback input pin 3: 8.4V-- Voltage transform input pin 4: 16V- power supply pin 5: 8.4V-- voltage output end(down) pin 6: 0-- ground pin 7: 48V-- power source pin 8: 0V-- ground pin 9: 8.4V-- voltage output end(up) pin 10: 1.2V--field driver input(-) pin 11: 1.2V-- field driver input(+) pin 12: 2V-- compensating resistance input
