TDA8755 D/A converter IC circuit diagram

Published:2012/7/25 3:21:00 Author:Ecco | Keyword: D/A converter , IC | From:SeekIC

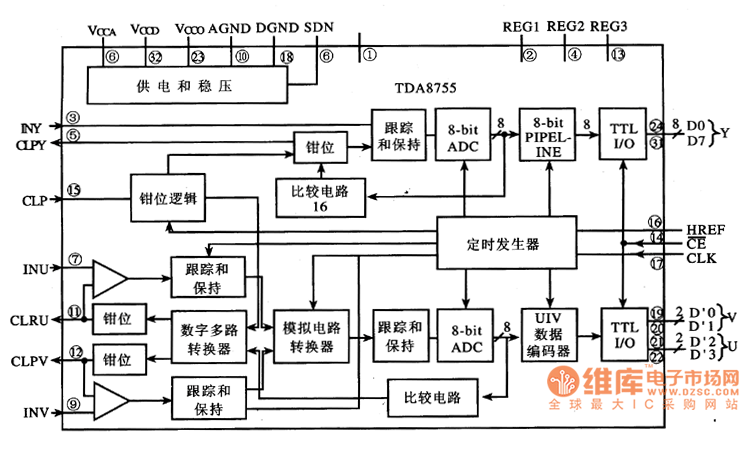

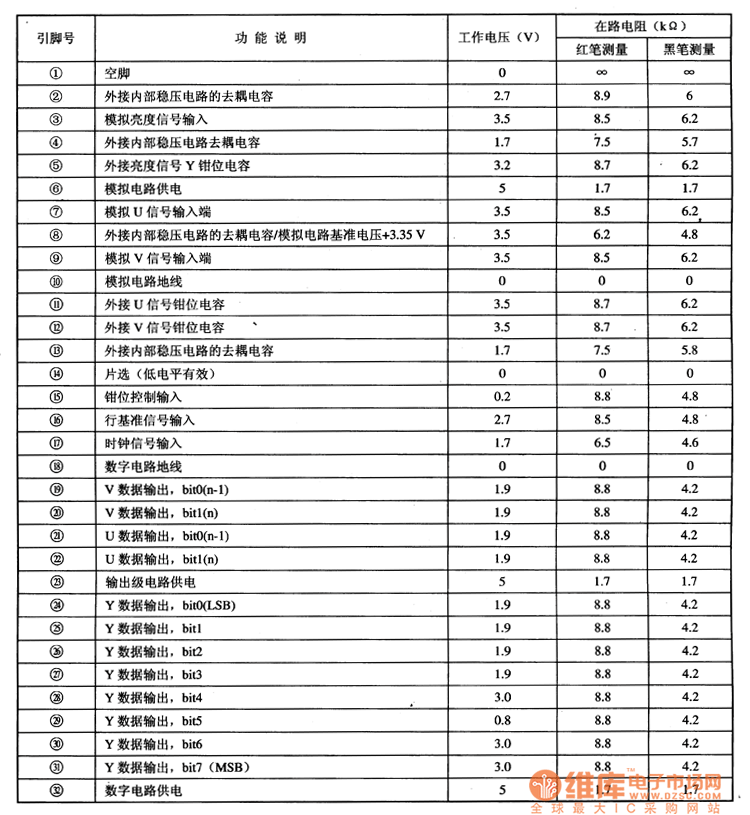

TDA8755 is the D / A ( digital / analog ) converter IC produced by philips company. It is suitable for A / D converter occasions such as the all applications included TV ( rear projection , LCD ), DVD players, instrumentation and so on. (1) Functions and Features TDA8755 integrated circuit includes a digital multi-channel converter, analog circuit converter, ADC circuit, digital encoder, clamping logic circuit, ADC interface circuit, tracking and maintaining circuit, timing generator, comparator circuit, power supply and regulator circuit and other auxiliary functions circuit. Its block diagram is shown in Figure 1. (2) pin functions and dataThe TDA8755 IC uses 32-pin double-row hundred plug-in package,and pin functions and data are shown in Table 1 .
