TEA2161 switching power thick film IC diagram

Published:2011/8/15 21:36:00 Author:Ecco | Keyword: switching power, thick film IC | From:SeekIC

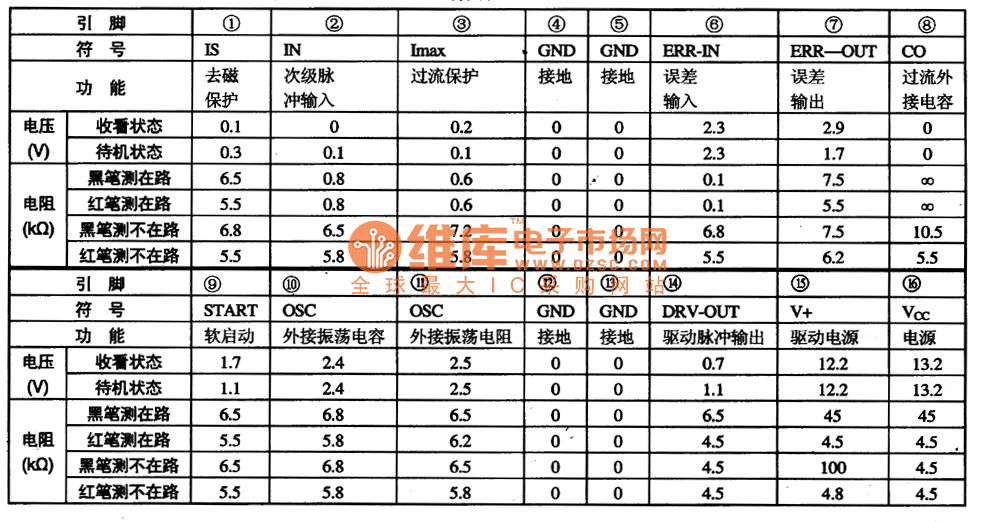

TEA2261 is the switching power thick film integrated circuit produced by Thomson, and it is widely used in Samsung series (such as C56226Z, C57230Z), Changhong CNS movement (eg, N2516, N2918), Feiyue FY703, Panda 2528,2928, C74P1, Venus C6418, etc. TV. TEA2261 IC's pin function and data are listed in Table 1-1.
