TEA2260 thick film switching power IC diagram

Published:2011/7/27 21:19:00 Author:Ecco | Keyword: thick film , switching power IC | From:SeekIC

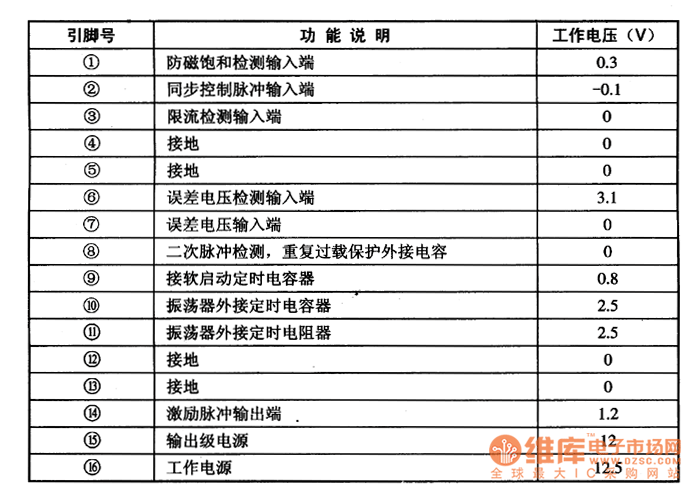

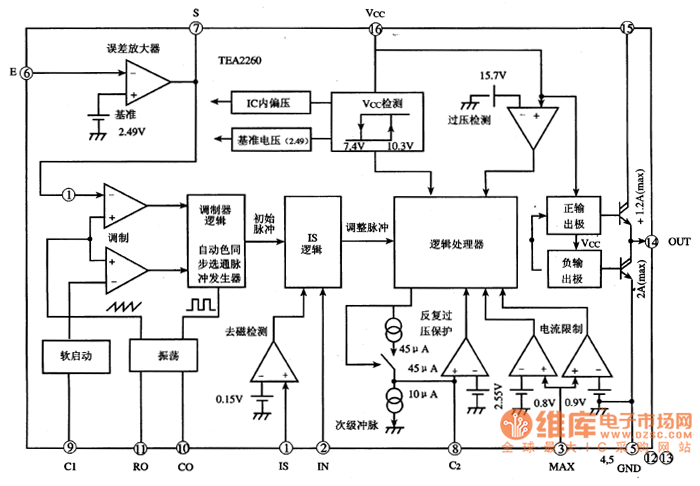

TEA2260 thick film switching power integrated circuit produced by French Thomson company is widely used in large-screen color television sets and computer monitors, switching power supply circuits. 1.The internal block diagram The internal block diagram of TEA2260 integrated circuit is shown in Figure 1. 2. pin functions and data TEA2260 IC uses 16-pin double row package, and the pin functions and data are listed in Table 1.
