TEA5114A-RGB switch integrated circuit diagram

Published:2011/5/5 1:03:00 Author:Ecco | Keyword: RGB , switch, integrated circuit | From:SeekIC

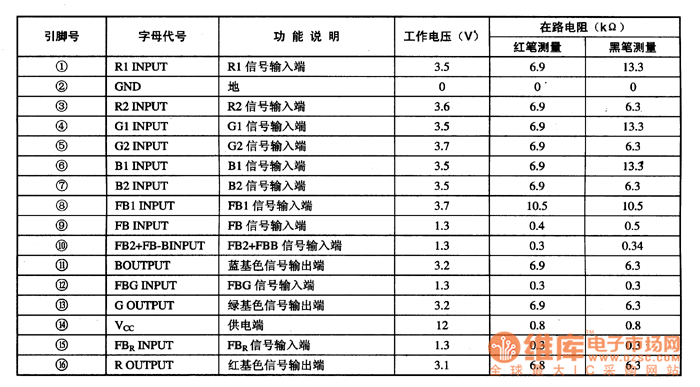

TEA5114A is the RGB switch integrated circuit produced by Thomson company in French, it is widely used in series brands of color TV and color monitors, such as Changhong series of rear projection color TV sets. 1. Features of functionTEA5114A integrated circuit is mainly composed of the RGB color signal processing circuit and associated switching circuit. 2. Pin functions and data TEA5114A IC uses 16-pin dual in-line package, the pin functions and data are listed in Table 1. Table 1 shows TEA5114A pin function and data.
