TEAl062 Calling integrated circuit diagram

Published:2011/8/15 21:30:00 Author:Ecco | Keyword: Calling integrated circuit | From:SeekIC

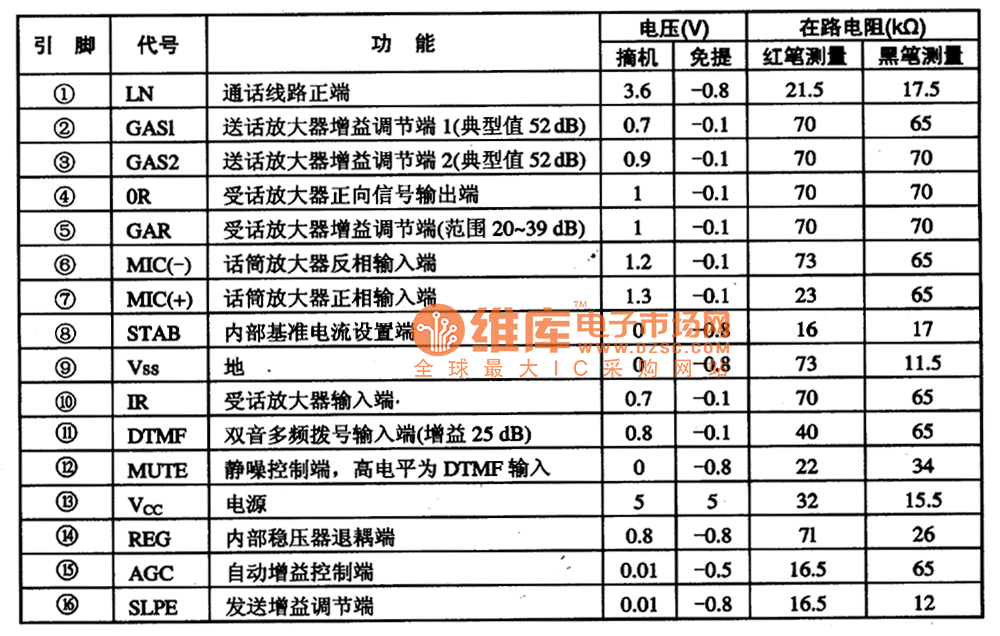

TEA1062 series of dedicated calling integrated circuits are widely used in telephone circuits. TEA1062 integrated circuit has the electrical chanting machine call and required line interface for dialing and call switching, and it is ideal for a wide range of calling integrated circuits. It uses 16-pin dual in-line package, and the integrated circuit pin functions and data are listed in Table 1-1.
