TMS34541NL-R digital clock integrated circuit diagram

Published:2011/5/9 2:07:00 Author:Ecco | Keyword: digital clock , integrated circuit | From:SeekIC

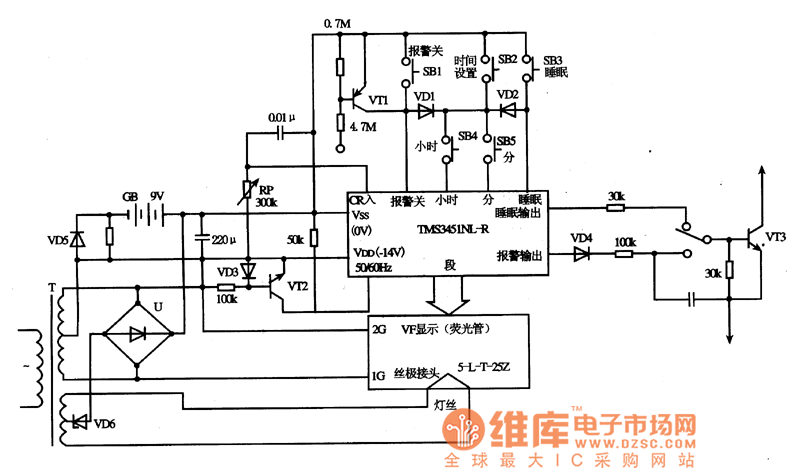

TMS34541NL-R is the digital clock integrated circuit produced by Toshiba, it is widely used in various digital clock. 1. Features of functionsTMS34541NL-R IC is mainly composed of the internal clock oscillator circuit, divider circuit, time control circuit, the comparator circuit and the fluorescent tube display output decoder and driver circuit. 2. Pin functionsTMS34541NL-R IC uses 28-pin dual in-line package, the pin functions are shown as the chart. 3. The typical application circuit The typical application circuit composed of TMS3451NL-R integrated circuit is shown as the chart.
