TOP223Y PWM monolithic integrated circuit diagram

Published:2011/5/9 1:34:00 Author:Ecco | Keyword: PWM , monolithic, integrated circuit | From:SeekIC

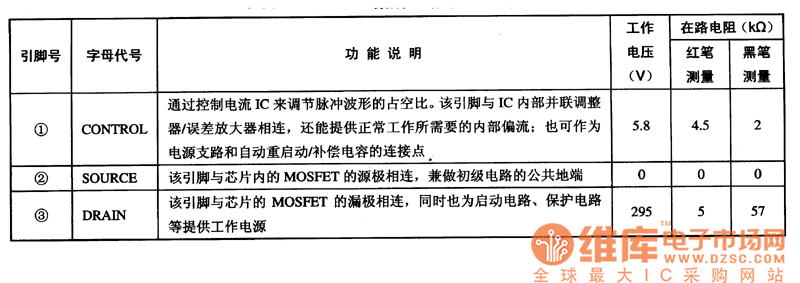

TOP223Y is th PWM monolithic switching power supply integrated circuit which is manufactured by the Power Company in the United States, it is widely used in switching power supply circuit of DVD, VCD, etc. DVD players, computers and monitors, air conditioner control system and various other household appliances. 1. pin functions and data TOP223Y IC uses separate three-pin package, the pin functions and data are listed in Table. T0P223Y integrated circuit pin functions and data 2. The typical application circuit The block diagram of TOP223Y integrated circuit and typical application circuit are shown as the chart. The block diagram and typical application circuit of TOP223Y IC
