TOUCH_SWITCH_2

Published:2009/7/8 4:02:00 Author:May | From:SeekIC

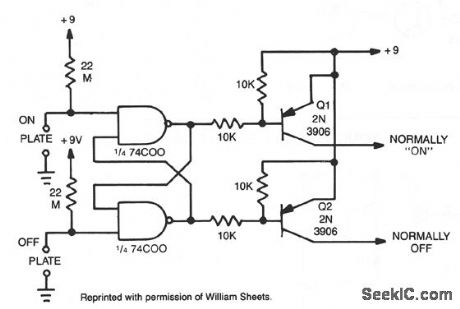

When the plate is touched, the gate input becomes low, changing the state of the latch.Q1 and Q2 give alternate N-on-N-off outputs.
