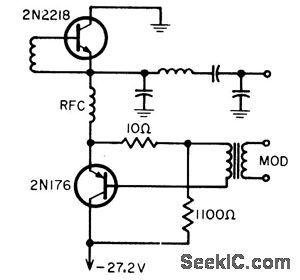

TRANSFORMER_COUPLED_SERIES_D_C_MODU_LATlON

Published:2009/7/21 Author:Jessie | From:SeekIC

Eliminates need for bulky modulation transformer and reduces envelope distortion when used in 27-Mc CB transmitter. Modulation power required is 0.35 mw. Chief disadvantage is that voltage source must be twice that of conventional collector-modulated transmitter.-B. Rheinfelder, Modulation Techniques for Transistorized A.M Transmitters, EEE, 11:7, p 54-57.
