TRANSISTORIZED_BAR_GRAPH_DRIVER

Published:2009/7/9 5:15:00 Author:May | From:SeekIC

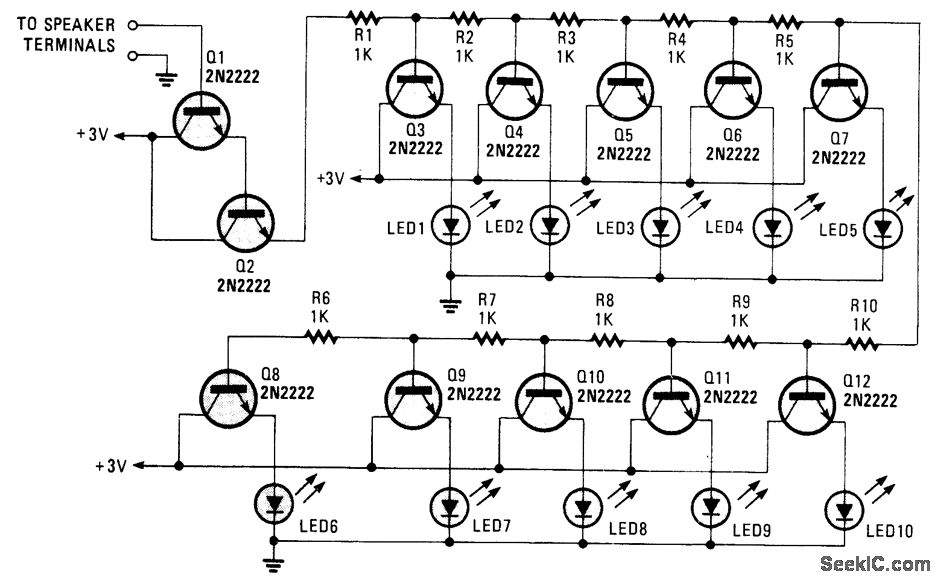

A resistor network (R1 through R10) with emitter followers (Q1 and Q2) drives LED drivers (Q3 through Q7). This circuit was used as a light organ to provide visual volume indication. It can be hooked to a speaker, to another audio source, etc.
