TRIAC_FOR_INDUCTIVE_LOADS

Published:2009/7/13 20:48:00 Author:May | From:SeekIC

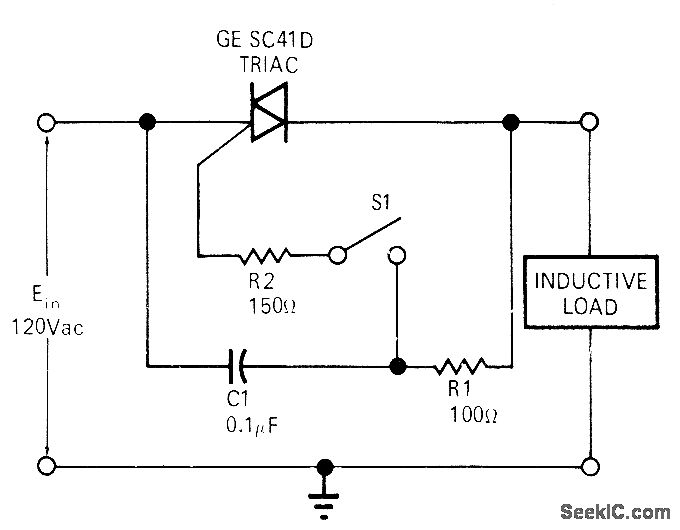

Simple triac gating circuit applies AC power to inductive load when low-power switch S1 is closed. R1 and C1 provide dv/dt suppression.-C. A. Farel and D. M. Fickle, Triac Gating Circuit, EDN/EEE Magazine, Jan. 1, 1972, p 72-73.
