The PC Intergrated Circuit of the C75P036 Air-conditioner

Published:2011/5/10 22:00:00 Author:Borg | Keyword: Intergrated Circuit, Air-conditioner | From:SeekIC

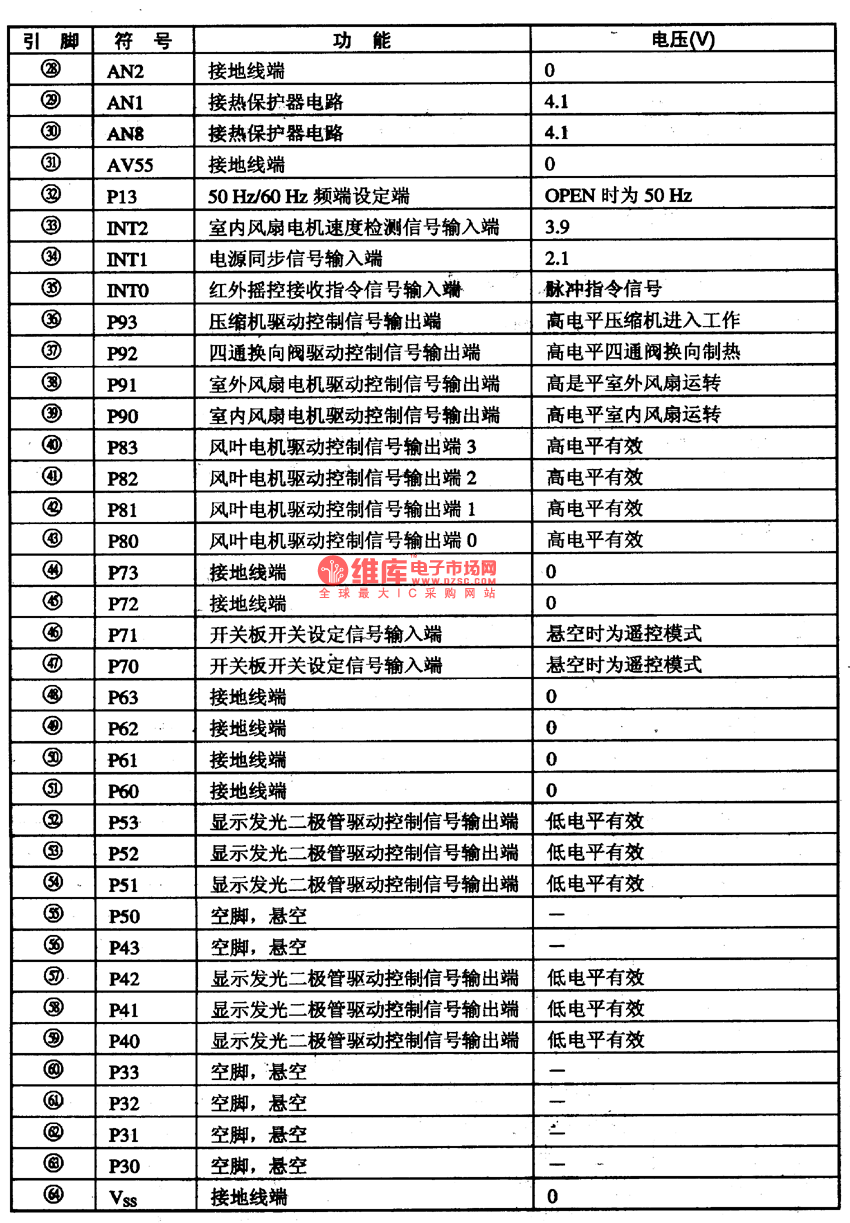

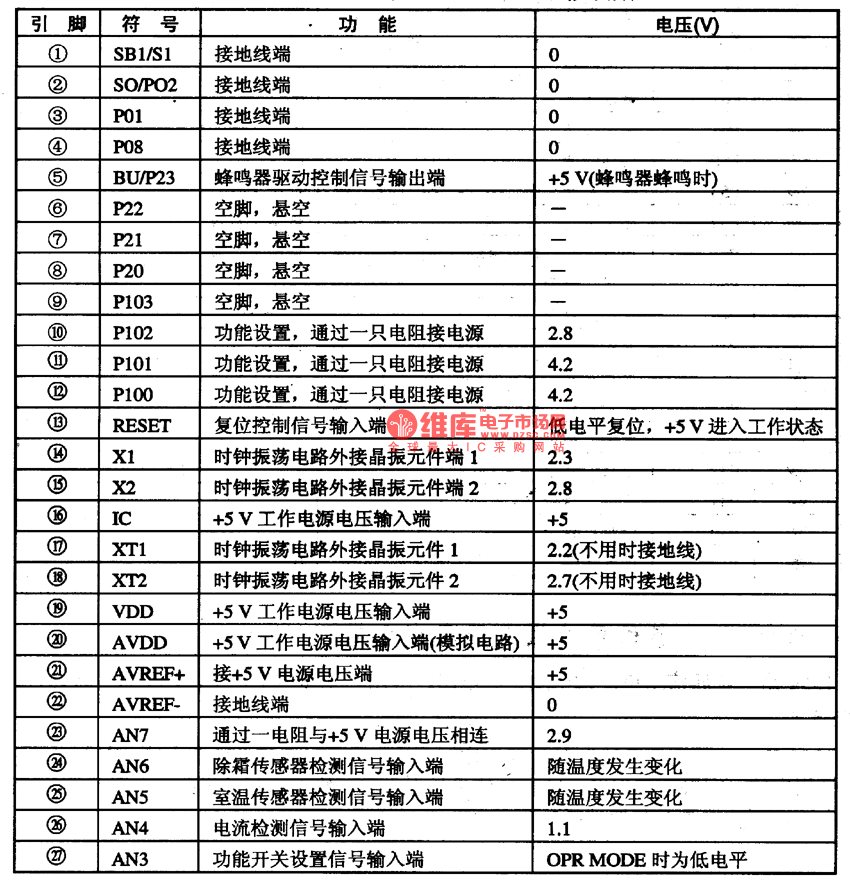

C75P036 is a air-conditioner intergrated circuit specially controled by singal door PCs, which is used in Midea, Hisense, Haier and Geli air-conditioners. 1.function feature C75P036 consists of three parts, i.e input circuit, central circuit controled by a micro computer and excuting drive circuit, in which the input circuit includes all kinds of signal handling circuit of the sensor test, protection circuit of signal handling and switch order handling circuits, the micro computer control center includes CPU,RAM,ROM and logic computing circuits, the excuting drive circuit includes all kinds of fans, compressors and four-way valve LEDs. 2.pin functions and data C75P036 intergrated circuits are packaged in a dual in-line way with 64 pinnings, whose pin fuctions and data are listed in Table 1. Table 1 pin fuctions and data of C75P036
