The application circuit of the AN6701

Published:2011/8/24 21:34:00 Author:Christina | Keyword: application circuit | From:SeekIC

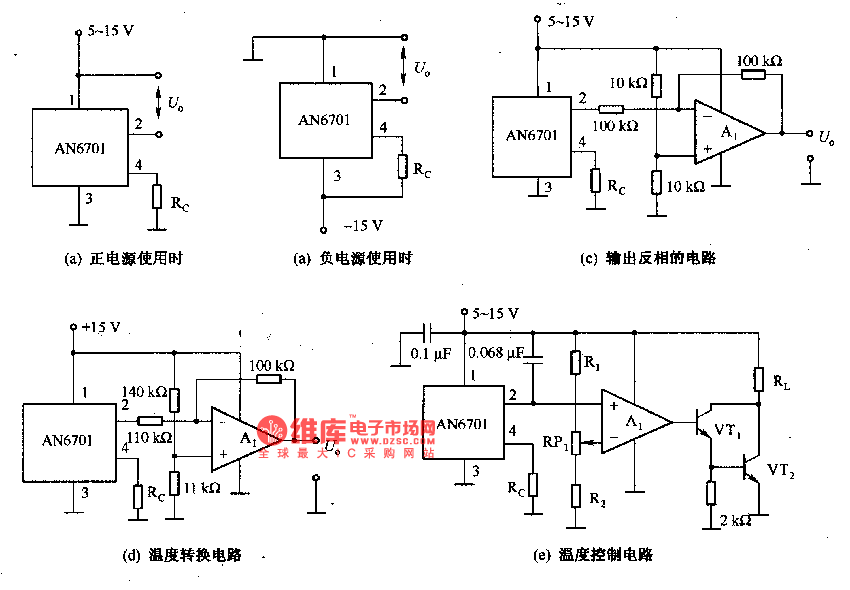

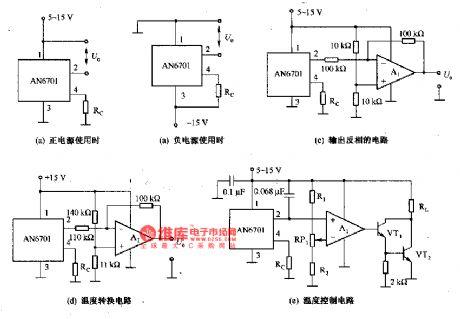

The application circuit of the AN6701 is as shown in the figure. The AN6701 has the features of high sensitivity, the cheaper price, the wide operating temperature range. The main characteristic parameters of it: the temperature range is -10 to +80℃; the sensitivity (Rc=1-100kΩ) is 105-113mV/℃, the nonlinearity is +/-0.5%; the thermal time constant in the still air is 24S, in the wind air is 11S; in the still air, the thermal resistance is 300℃. The output voltage of the sensor (25℃) can be set to 5.0V by the external resistor. The AN6701 is composed of the temperature-sensitive component, the temperature compensation component and the amplifier, it outputs the low impedance. It uses the miniature package to improve the thermal response characteristics.
