The circuit of counter composed of digital circuit

Published:2011/7/14 23:12:00 Author:Fiona | Keyword: counter, digital circuit | From:SeekIC

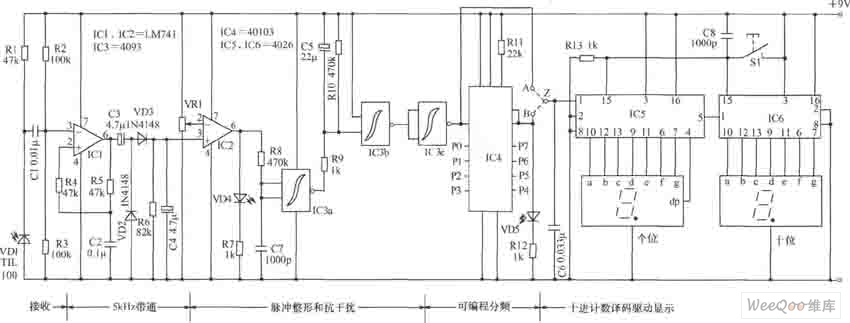

The digital circuit composed of counter as shown in figure uses infrared ray as the detection signals,a small device for scanning count moving target is applicable to the production line, it can count fast and accurate the moving items on the conveyor belt. It can also be used for other purpose, such as counting the passagers of enterance or exit and so on. The circuit’s characteristic is the simple structure, making easy, economical and practical. There is also a most prominent advantage that it can count the different shading number of items directly.
