The structure circuit diagram of chip diode

Published:2011/5/6 3:27:00 Author:Ecco | Keyword: structure circuit, chip diode | From:SeekIC

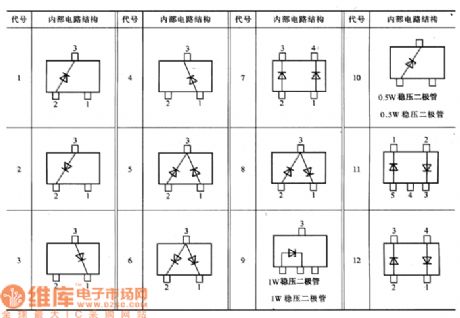

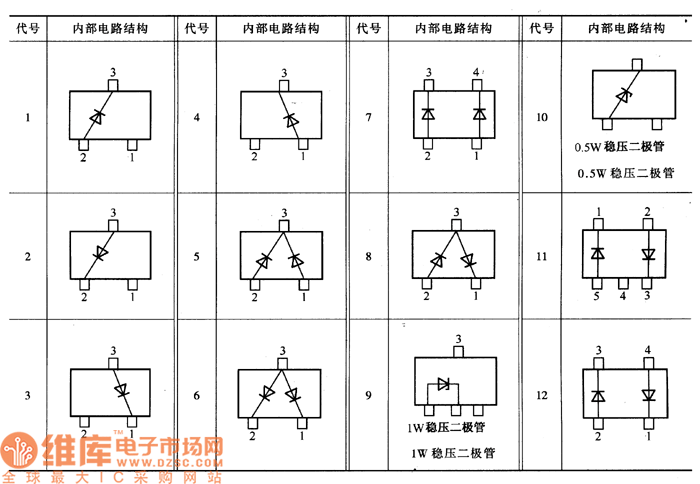

The structure circuit diagram of chip diode is shown as the chart. The chip diode has many different types such as the rectifier diode, varactor diode, fast recovery diode, switching diode, zener diode, light emitting diode and transient voltage suppression diode. Most models of the chip diodes use the model of leading diode, some manufacturers also have their own requiring model, There is no uniform requirements.
