The structure indicating diagram of rectangular chip resistor

Published:2011/4/27 21:42:00 Author:Ecco | Keyword: structure indicating , rectangular chip , resistor | From:SeekIC

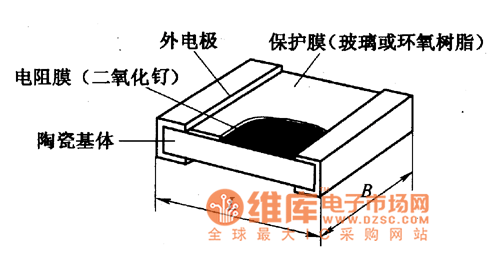

Structure and dimensionsRectangular chip resistors have two types, namely, thick film chip resistors and thin film chip resistors. The thick-film chip resistors are commonly used. The structure of rectangular chip resistors is shown as the chart.
