The timing responder circuit diagram

Published:2011/5/3 3:24:00 Author:Ecco | Keyword: timing responder | From:SeekIC

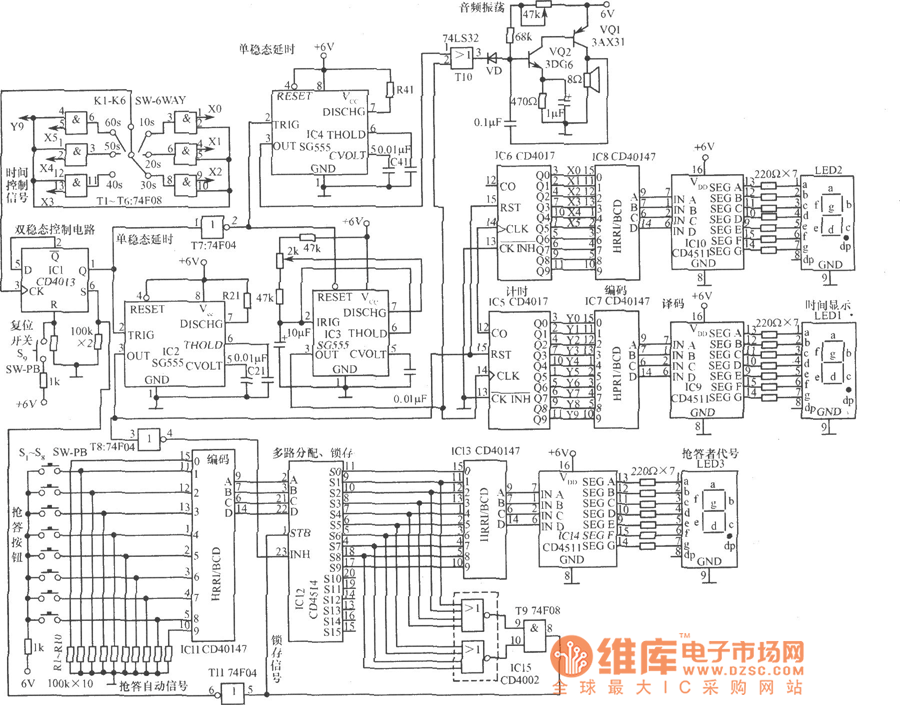

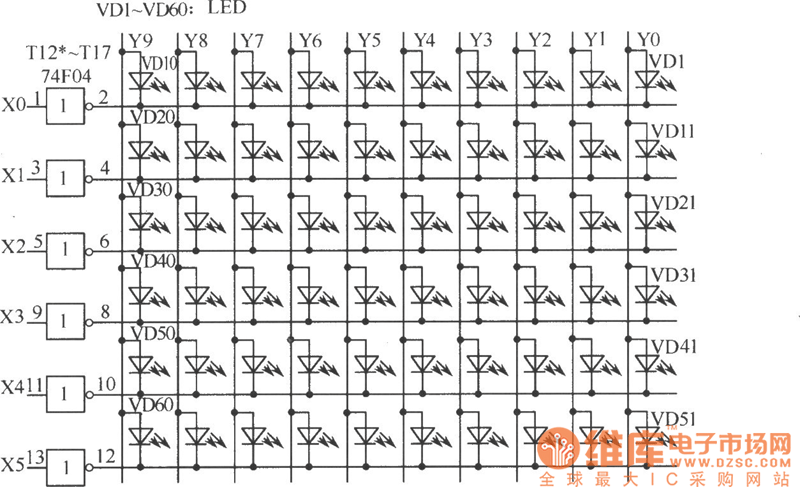

The circuit is shown as the circuit, the timing responder circuit is composed of the following parts: (1) clock pulse oscillation circuit. IC3 and its peripheral components form oscillator, period T = 1s. (2)display, light-emitting circuit (3) answer brake circuit (4) the end of the brake circuit when walking (5) resetting start (6) second frequency LED circuit:
