Three level circuit topology

Published:2011/4/21 2:16:00 Author:Nicole | Keyword: topology, three level | From:SeekIC

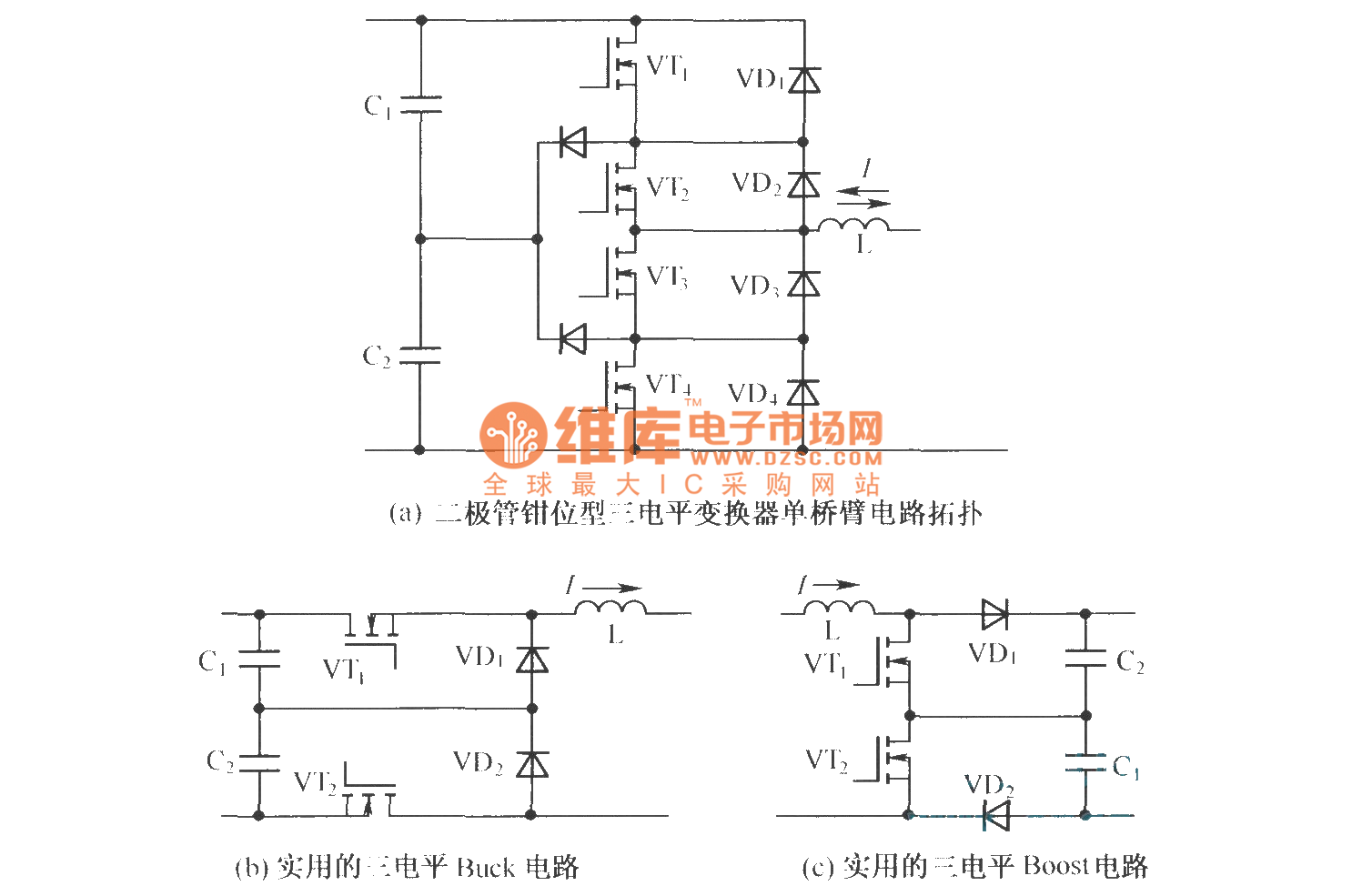

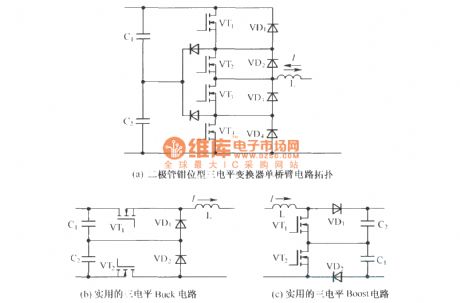

Traditional two level inverting bridge can be divided into Buck and Boost circuit easily, adopting a similar way, we can divede the diode-clamped three-level inverter as shown in figure (a) into three level Buck and Boost circuit with valuable, after necessary improvement. They are as shown in figure (b) and figure (c).
