Three motors starting circuit using autotransformer

Published:2012/10/14 20:34:00 Author:Ecco | Keyword: Three motors, starting, autotransformer | From:SeekIC

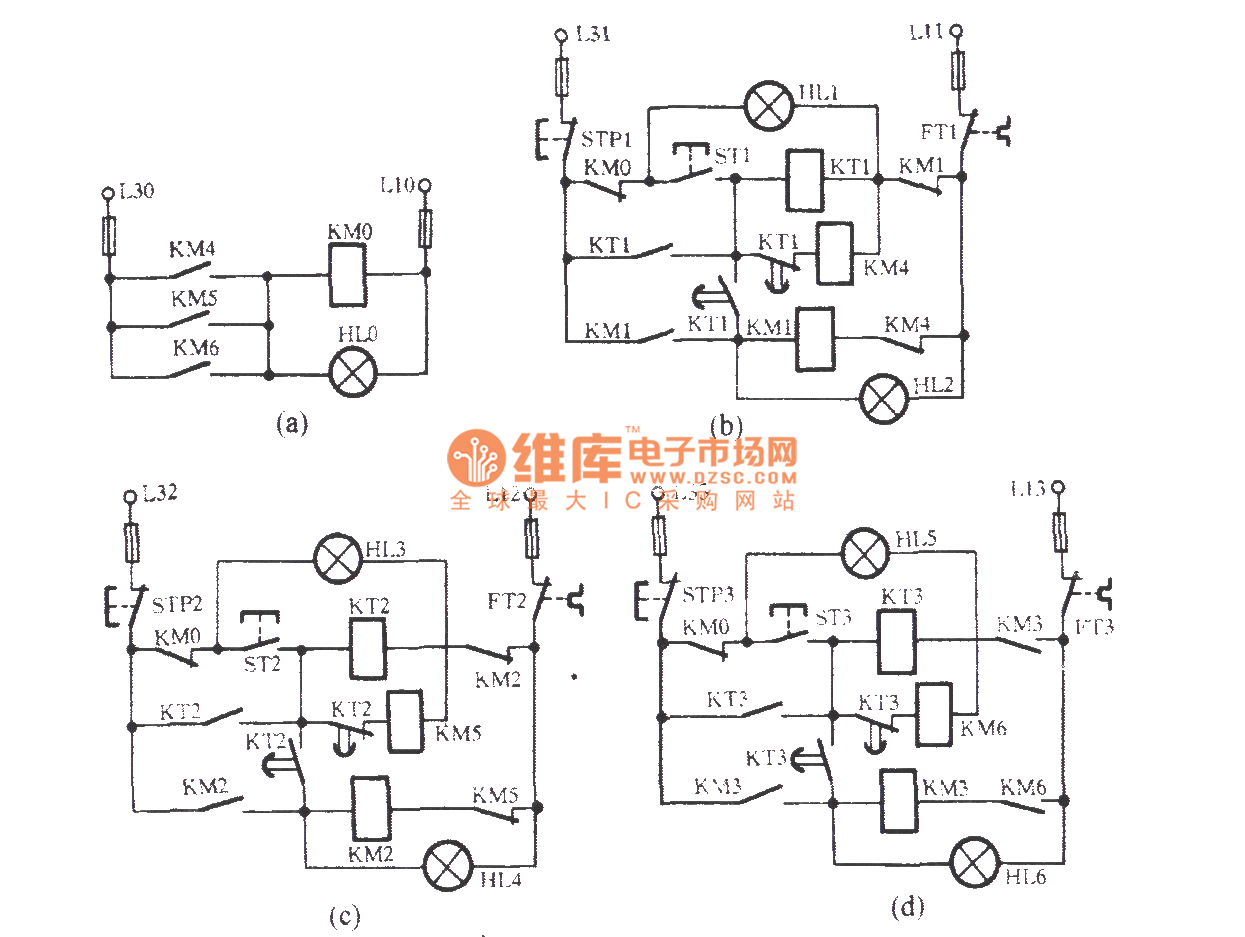

Figure (a)is the switching display circuit for starting three motors; Figure (b) shows a start control circuit of motor M1; Figure ( c ) , ( d )are respectively start control circuit of M2, M3.
