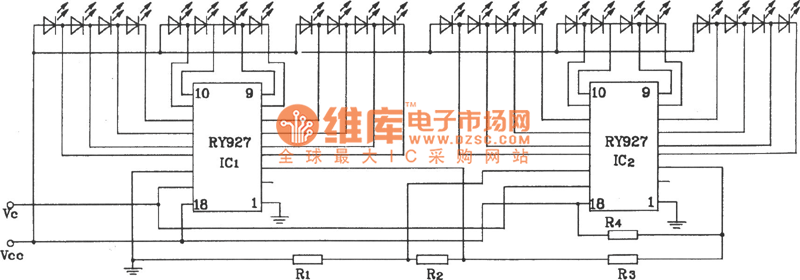

Two RY927 league level applications circuit diagram

Published:2011/4/28 22:55:00 Author:Ecco | Keyword: Two , league level , application | From:SeekIC

When RY927 is using cascadedly, it needs to connect the related input ends according to the chart. The connecting method is the same when there are more than two stages. It should be noted that RY927 allows seven cascaded as maximum, and it can drive 84 LED at best. Besides the above applications, it can also constitute the automatic dimming, speed tables and so on. If it requires less precision, it can also be used for voltage indication, field instruction and other circuits.
