Two-way transfer switch typical circuit

Published:2011/7/8 5:33:00 Author:Christina | Keyword: Two-way, transfer switch, typical circuit | From:SeekIC

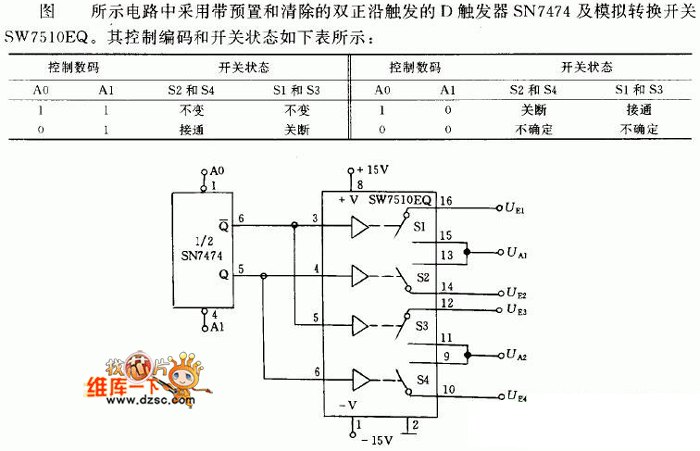

The dual positive edge triggered D trigger with the preset and clear functions and the analog change-over switch SW7510EQ are as shown in the figure. The control codes and the switch states are as shown in the table:
