UM3763 Datasheet

Published:2013/9/21 21:09:00 Author:lynne | Keyword: UM3763 Datasheet | From:SeekIC

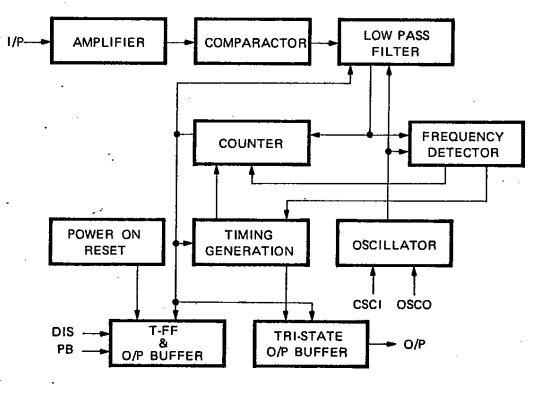

The UM3763 datasheet specifies that this IC is a CMOS LSI circuit which contains analog signal amplifiers and frequency detector for driving motor. It is designed for use in electronic devices and other applications. It is packed with 8 pins DIP. UM3763 pin configuration UM3763 features typical 3V operating voltage a motor can be driven by connecting a NPN transistor RC oscillator with one external resistor on-chip analog signal amplifiers use of whistle for controlling the output stage will change when the device senses effective frequency
